1.5KW Water Evaporative Cooler 20000 m3h Industrial Air Cooling System

Share to:

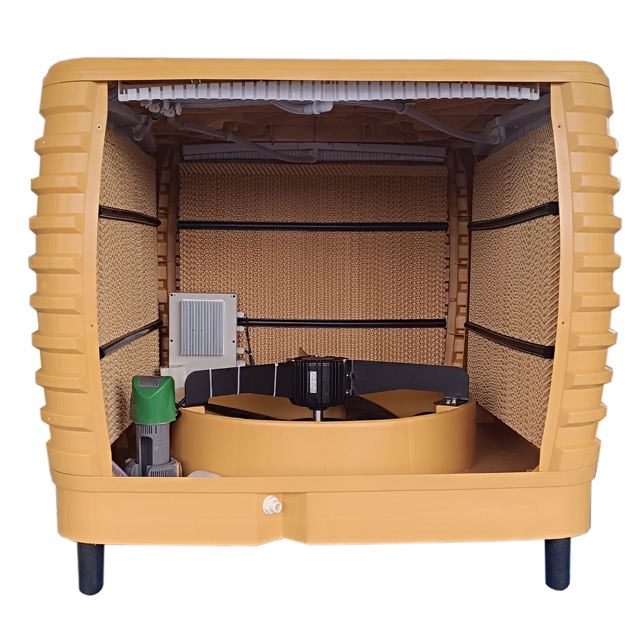

1.5KW Water Evaporative Cooler 20000 m3h Industrial Air Cooling System

Hipai Evaporative Air Cooler Principle
Hipai evaporative air cooler is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems which use vapor-compression or absorption refrigeration cycles. Evaporative cooling works by employing water's large enthalpy of vaporization. The temperature of dry air can be dropped significantly through the phase transition of liquid water to water vapor (evaporation), which can cool air using much less energy than refrigeration. In extremely dry climates, evaporative cooling of air has the added benefit of conditioning the air with more moisture for the comfort of building occupants.

Availability:

Quantity:



Inquire Add to Basket

Model:
HP10-20S-1
Brand:
HIPAI

Product Description

Compare with other Cooling or Ventilation Devices

Type	Evaporative Cooler	Traditional AC	Centrifugal Fan	Ceiling Fan
Capacity	20000 CMH	400 BTU/hr	40 CMH	1400 mm.dia
Power (kw)	1.5	54	7.5	0.075
Effective Area (Sqm)	1000	1000	1000	1000
Air Change per hour	30	0	30	0
Units Required	6	2	3	83
Total Consumption (kw)	9	108	22.5	6.2
Electricity Cost Per Year (kwh) (10 hrs, 365 days)	32850	394200	82125	22721
Cost Ratio	8.33 %	100 %	20.83 %	5.76 %

SPECIFICATIONS FOR HP 10-20S-1
Airflow (m3/h)	20000
Air Pressure (Pa)	235
Fan Type	Axial
Speed	Variable speeds
Noise (dB)	≤ 68
Effective Area (m2)	150-200
Evaporation Efficiency (%)	85
Water Capacity (L)	40
Power Supply (V/Hz)	220/50
Power Consumption (kw)	1.5
Controller	LCD Touch Screen and Remote Controller
Net Weight (kg)	78
Dimension (mm)	1100×1100×1030

Main Features

HP10-20S-1 is a 1.5KW Rooftop Evaporative Cooler 20000 m3h Industrial Air Cooling System which could be used for all kinds of indoor/outdoor applications. It uses a 1.5KW fan motor, brings you a powerful wind of 20000 CMH, 12 speeds. Using 5090 cooling pad, industrial leading cooling performance.

1) Large airflow, 20000 CMH with variable speed;

2) Cools an area up to 200m2;

3) Energy saving design, operation costs is about 10% of traditional Air conditioner;

4) High quality cabinet using PP with UV protection;

5) LCD Touch Screen and Remote Controller;

6) Top / Down discharge models available;

7) Easy installation and maintenance;

8) OEM acceptable.
